MR2 Rain Gauge





  • simply non-heated rain gauge with tipping bucket - intended for liquid precipitation measurement only
  • pulse output

Catching area

200 cm2

Resolution (amount of precipitation per one turnover of the bucket)

0.2 mm

0.1 mm (optionally)

Dimensions - height (including fastening bolt) x diameter

269,6 mm x 179 mm

Weight

1900 g









Download datasheet

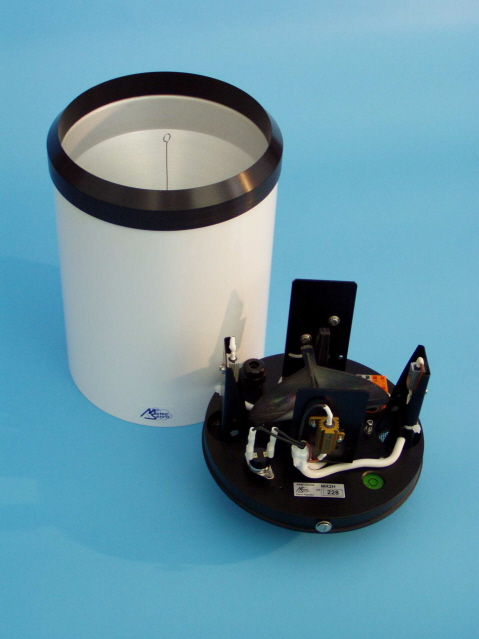

MR2H Rain Gauge





  • heated rain gauge with tipping bucket - intended for liquid and solid precipitation measurement
  • the space of the tipping bucket under the funnel is heated
  • the heating is controlled by the thermostat
  • pulse output

Catching area

200 cm2

Resolution (amount of precipitation per one turnover of the bucket)

0.2 mm

0.1 mm (optionally)

Dimensions - height (including fastening bolt) x diameter

269,6 mm x 179 mm

Weight

2100 g

Voltage necessary for heating

40 - 46V AC

Power of heating elements

48 - 57 W

Thermostat switching temperature

+15°C ±3°C



 Up



Download datasheet



MR3 Rain Gauge





  • non-heated rain gauge with tipping bucket - intended for liquid precipitation measurement only
  • pulse output

Catching area

500 cm2

Resolution (amount of precipitation per one turnover of the bucket)

0.1 mm

0,2 or 0,5 mm (optionally)

Dimensions - height x diameter

336 mm x 278 mm

Weight

4250 g









Up



Download datasheet

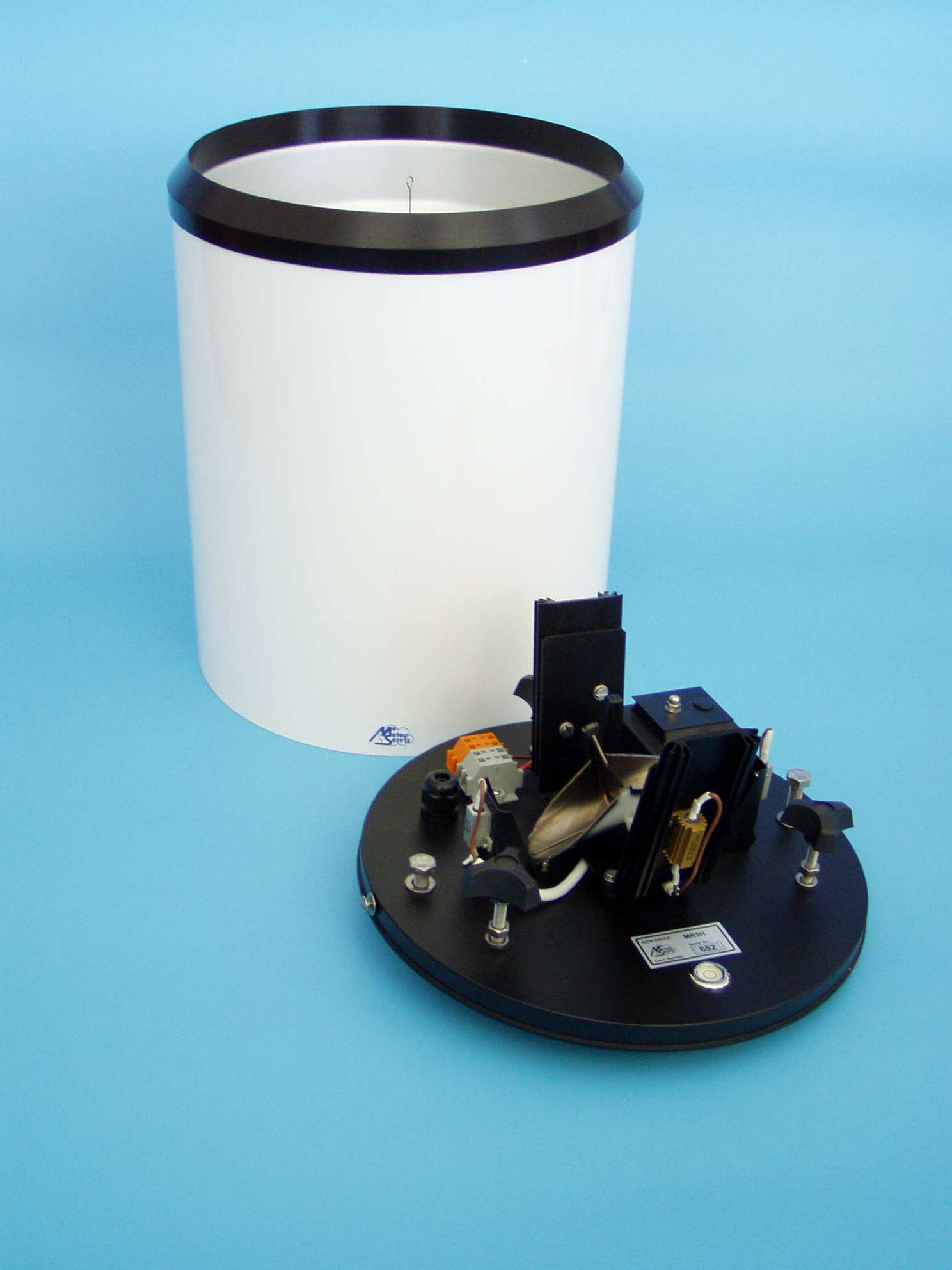

MR3H Rain Gauge







  • heated rain gauge with tipping bucket - intended for liquid and solid precipitation measurement
  • the space of the tipping bucket under the funnel is heated
  • the heating is controlled by the thermostat
  • pulse output

Catching area

500 cm2

Resolution (amount of precipitation per one turnover of the bucket)

0.1 mm

0,2 or 0,5 (optionally)

Dimensions - height (including fastening bolt) x diameter

336 mm x 278 mm

Weight

4500 g

Voltage necessary for heating

40 - 46V AC

Power of heating elements

48 - 57 W



Up



Download datasheet



MR3H-F Rain Gauge (MR3H-FC)







  • heated rain gauge with tipping bucket - intended for liquid and solid precipitation measurement
  • rain gauge heating system is divided into three independent sections that are controlled by a microprocessor proportionally according to the outer temperature
  • short-period "shock heating" of the catching aperture collar during specified time and conditions
  • maximal effectivity at solid precipitation measurement with minimization of the error caused by evaporation
  • pulse output
  • dynamic correction of the output value according the rainfall intensity (MR3H-FC version)
  • rain gauge can be equipped by additional heating outflow unit for extreme winter conditions



Catching area

500 cm2

Resolution (amount of precipitation per one turnover of the bucket

0.1 mm

Dimensions - height x diameter

336 mm x 278 mm

Weight

5100 g

 Voltage for electronics

12 V  DC (max. 18V DC)

Voltage necessary for heating



40 - 46V AC
Power of heating elements

 445 W

 Operating temperature

-30°C..+60°C

-40°C..+60°C

(optionally)










































Up



Download datasheet

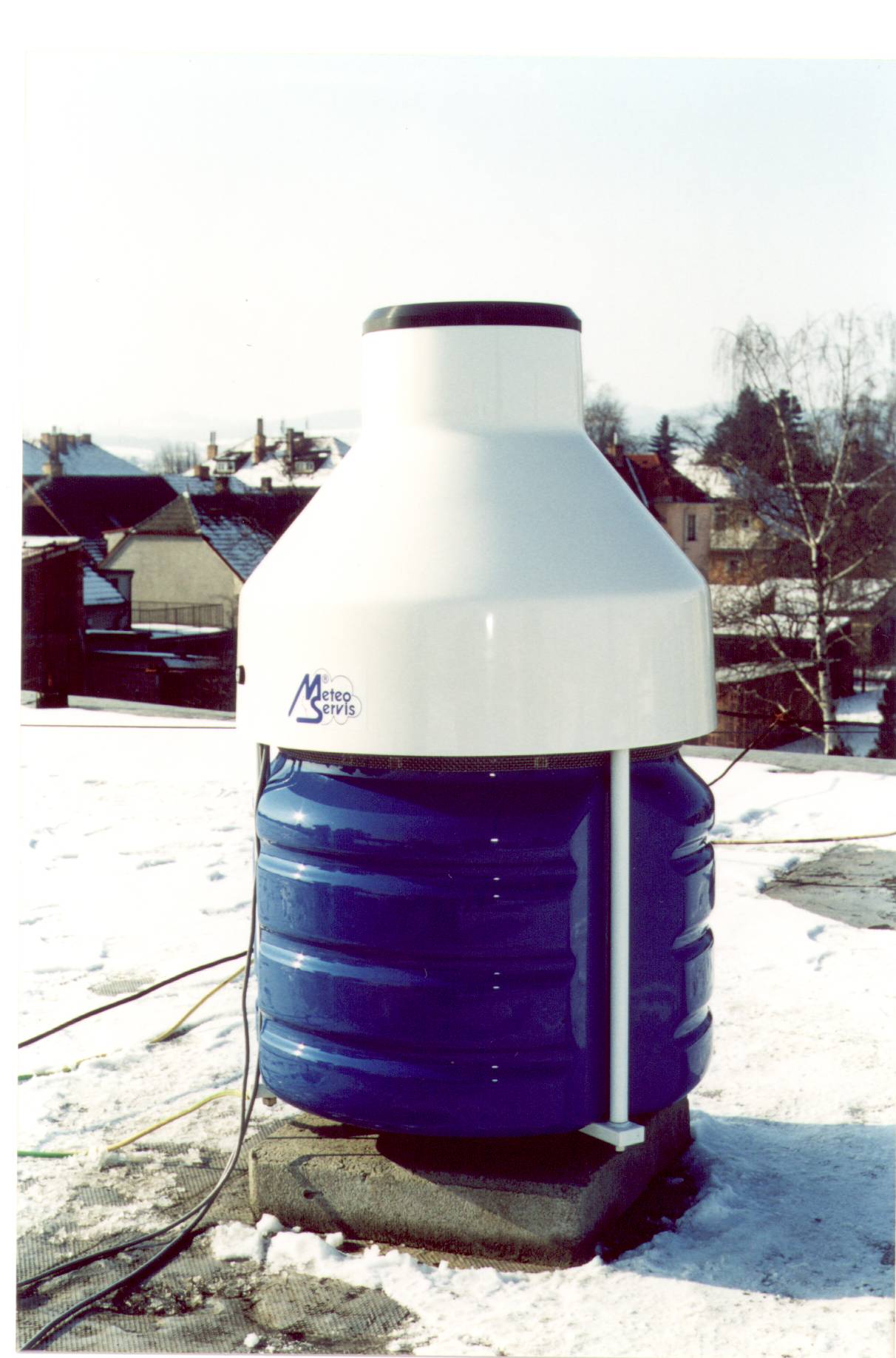

MRW500 Rain Gauge





  • weighing principle of measuring - rain gauge is intended for liquid and solid precipitation measurement
  • accurate instantaneous measuring of high intensity precipitation and solid precipitation
  • liquids transfer between upper weighed vessel and lower accumulated vessel is performed automatically by pumps
  • prolonged operating time without operator intervention
  • short-period "shock heating" of the catching aperture collar during specified time and conditions
  • integrated "hardware" and "software" rain detector
  • data or pulse output











Up



Download datasheet
